General information​

About this Manual​

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the Q-HWA-Entry. Installation and maintenance should be performed by experienced technicians only.


The following information relates to the safety of installation and maintenance personnel. Read all instructions before attempting to unpack, install or operate this equipment, especially before connecting the power adapter. Please refer the Safety Instruction Guide when installing this equipment.

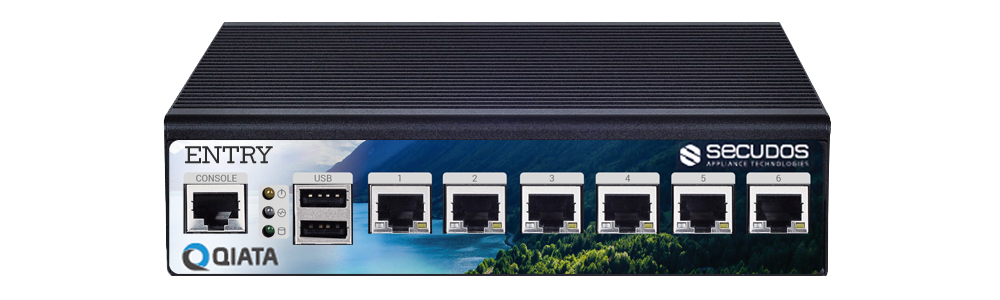

Qiata FTA Entry

Hardware Configuration​

Memory4 GB DDR3
HDD128 GB 2.5” mSATA
Form FactorDesktop
Dimensions (W x D x H)124 mm, 124 mm, 19 mm
Net Weight0.6 kg
Power12 V – 3.3 A
Power Supply Input Voltage Range100 VAC – 240 VAC
Power Supply Frequency50 Hz – 60 Hz
Storage Temperature-20Β°C – +75Β°C
Operation Temperature0Β°C – 40Β°C
Relative Humidity5% – 85%, non-condensing
CertificationsCE, FCC

Setting up your Q-HWA-Entry​

This chapter describes the procedure used to install your Q-HWA-Entry and perform the initial configuration.

Inspecting the Package​

The appliance package should contain the following items:

  • One Q-HWA-Entry Security Appliance
  • One external power supply
  • One Ethernet crossover cable (colored RED)
  • One Ethernet standard cable (colored GREY )
  • One serial cable (console)
  • SDR-Stick including SDR-Documentation
  • One Quick Start Guide

If an item is missing, please contact your dealer.


  • A crossover cable should be used when connecting the Appliance directly to another machine.
  • A standard Ethernet cable should be used when connecting the Appliance to a network hub, switch or modem.

Powering Up the Q-HWA-Entry​

  1. Connect and power on the Appliance. After a few seconds the Status LED starts to blink.
  2. Wait until the Status LED indicates constant GREEN: Booting procedure is finished

Powering Down the Q-HWA-Entry​


You must shutdown the system before switching off the power to the Appliance! You can do this via the WebUI.

  1. At the beginning of the shutdown procedure the status LED will start to blink.
  2. The status LED will switch to RED at the end of the shutdown procedure.

Connect the Appliance to your network​

Default Configuration​

The Management-port is pre-configured to You can change this IP address using the WebUI or on the console using the tool DomosNetConf.

Default Network Configuration​

InterfaceIP AddressNetmask

All other Ethernet connectors are not configured. Further information and documentation can be found in the DOMOS hardware documentation.
